磁性開關YS-07 供應
產品概述

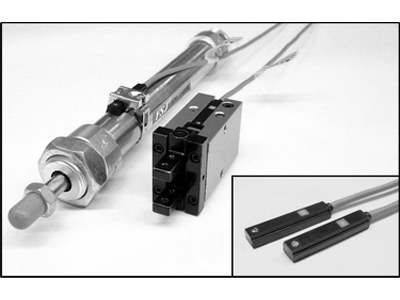

YS-07磁性開關是一款高靈敏度非接觸式位置檢測裝置，采用磁感應原理設計，適用于工業自動化領域的各類位置檢測需求。該產品通過感應磁鐵接近時的磁場變化實現開關動作，無需機械接觸即可輸出穩定電信號，具有響應速度快、使用壽命長等特點。其緊湊型結構設計便于安裝在不同規格的氣缸或機械設備上，可廣泛應用于物料輸送、裝配線定位、閥門控制等場景。128
技術特點
YS-07磁性開關采用優質材料制造，具有優良的環境適應能力。產品工作電壓范圍覆蓋DC5-240V，檢測距離可達10mm，能適應-20℃至+70℃的工作環境溫度。內部采用特殊處理的金屬簧片結構，確保在振動、粉塵等復雜工況下仍能保持穩定性能。產品提供常開/常閉兩種輸出模式可選，接線方式簡單明了，棕色線接正極、藍色線接負極、黑色線為信號輸出線，便于系統集成。215
應用領域
該產品在自動化生產線中可用于檢測氣缸活塞位置、傳送帶物料到位情況以及機械部件的運動行程。例如在包裝機械中可實現精確的包裝材料定位，在汽車制造領域能可靠檢測焊接機器人氣缸的工作狀態。此外還可應用于安全防護裝置，當設備防護門開啟時觸發信號實現急停功能。其防水防塵設計也適用于礦山、水泥等行業的輸送帶監控系統。2224
質量保障
YS-07磁性開關在生產過程中經過嚴格的性能測試和耐久性驗證，確保每批次產品的一致性。通過優化電磁兼容設計和密封工藝，產品能有效抵抗工業環境中的電磁干擾和濕度影響。制造商提供完善的技術支持服務，可根據客戶具體應用場景提供安裝指導和使用建議，幫助用戶實現最佳檢測效果。1128
Product Introduction
The YS-07 magnetic switch is a non-contact position sensing device utilizing magnetic field induction technology. With compact housing and reliable performance, it can be easily mounted on pneumatic cylinders or mechanical equipment for precise position feedback in automated systems. The product eliminates mechanical wear through contactless operation, making it ideal for high-frequency applications in material handling, assembly lines and process control.315
Key Features
This magnetic switch features wide voltage compatibility from DC5V to 240V and operating temperature range between -20℃ to +70℃. The 10mm sensing distance ensures flexible installation options while maintaining detection stability. Its encapsulated design provides IP67 protection against dust and moisture ingress. The color-coded wiring (brown/blue/black wires) simplifies connection to control systems, with options for normally open or normally closed output configurations. The lead wire version allows convenient remote mounting in limited spaces.2327
Typical Applications
The YS-07 series is widely implemented in industrial automation scenarios including cylinder position monitoring, conveyor belt sequencing, and safety door interlocking. Typical use cases include detecting robotic arm movements in automotive welding lines, controlling filling machine valves in packaging systems, and providing position feedback for hydraulic presses. Its robust construction suits demanding environments like mining equipment and bulk material handling systems where vibration and temperature fluctuations exist.1122
Quality Commitment
Each YS-07 magnetic switch undergoes rigorous testing for electrical performance and mechanical endurance before shipment. The manufacturer implements comprehensive quality control measures throughout production processes to ensure consistent product reliability. Technical support is available to assist with installation optimization and application-specific solutions, helping customers maximize operational efficiency in their automation projects.2815
磁性開關
AL-44R，AL-43R，AL-42R，AL-41R，AL-17R，AL-13R，AL-11R，AL-09R，D-C80，D-A80，CKD-T2H，LJC2-3/60，LJC1-3/24，QCK2422，CK-3，NJK-5002P， CST-220，CS1-G，CS1-S，CS1-J，CS1-U，CS1-F，D-A73，D-C73，D-Z73，D-A54，D-B54，HX-20R，F(xiàn)D-50R，ZE-135，ZC-230，KT-50R，KT-33R，KT-32R，KT-21R，KT-21RY，KT-20R，KT-16R，KT-15R，KT-11R，KT-07R，KT-06R，KT-03R，KL-3045，P1-1A151，4621A，110E681，YIDA-50，YIDA-40，YIDA-35，YIDA-32，YIDA-31，YIDA-21，YIDA-20，YIDA-16，YIDA-15，YIDA-12，YIDA-11，YIDA-09，YIDA-08，YIDA-07，YIDA-06，YIDA-03，YSD-T3，YS-72，YS-32，YS-07，YS-06，YS-03，YGMB-1A，YC-16，TAIYO-YR101, TCS1-D, TCS1-E, TCS1-F, SR-401,SL-26，MG-12，MR-3019，LN-09D，LN-01D，LN-15T，LS-BD2，LY-D73，LY-67A，LY-63，LY-43-1，LY-43，LY-9D-1，LY-9D，LYD-72R，LYD-50R，LYD-35R，LYD-32R，LYD-31R，LYD-21R，LYD-20R，LYD-16R，LYD-15R，LYD-12R，LYD-11R，LYD-07R，LYD-06R，HWK-23，GA-3，GA-2，GLS-KBI，GLS-KAI，GMK-2A，GMD-2A，GMF-2A，GME-2A，GMT-2A，GMC-2A，GMB-2A，GMA-2A，DX-21R，DX-20R，DX-03R，DSM-2C，D-R731L，D-SM2C，D-A93V，D-A93L，D-A93，D-93A，D-Z80，D-Z73L，D-C73L，D-A73L，D-Y69B，D-Y69A，D-Y59A，D-K59，D-B50，D-H7B，C7Y-28G，C7-Z20G，CK-J2R，CKD-RO，CK-2422，CS-100，CS-80B，CS-50B，CS-32B，CS-30E，CS-9D， AL-72R，AL-30R，AL-21R，AL-20R，AL-15R，AL-07R，AL-03R，AL-02R，AL-01R，AN-72R，AN-50R，AN-36R，AN-32R，AN-31R
AN-22R，AN-21R，AN-20R，AN-11R，AN-10R，AN-07R，AN-06R，AN-03R，AN-01R，
特點 ：
有PP、PVDF材質可適用于強酸堿場所；SUS 304/316金屬材質適用于高溫高壓桶槽。
接線盒規格齊全，有塑料、鋁合金、不銹鋼防爆型，防護等級IP-65以上。
接點容量50W/250VAC SPST或 30W/200VDC SPDT。
接續法蘭有JIS、DIN、ANSI規格；牙口有 NPT、PF、BSP等規格。
有ABS、GL、CR國際船籍認證及Ex防爆認證。
可做多點控制、安裝容易、節省成本。
|
