磁性開關D-Y69B 供應
產品介紹
中文介紹

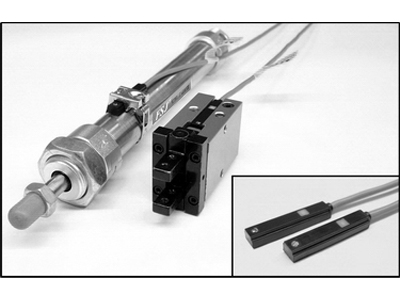

D-Y69B磁性開關是一種無觸點磁性開關，采用直接出線式設計，帶有指示燈，適用于2線制電路，引出線長度為0.5米，工作電壓范圍為DC10~28V。它基于電磁感應原理工作，通過磁場的變化來控制開關的通斷。這種開關廣泛應用于工業自動化領域，尤其適用于氣缸位置檢測、行程監測和動作控制。
D-Y69B磁性開關具有良好的防水防塵性能，防護等級達到IP65，能夠在惡劣的工業環境中穩定工作。其外殼材質為鋁和PC，堅固耐用。此外，該開關的機械壽命可達200萬次，電氣壽命為30萬次，能夠滿足長時間、高頻率的使用需求。
D-Y69B磁性開關的安裝方式靈活，可以直接安裝在氣缸上，方便用戶根據實際需求進行配置。它還具備延時時間可調的功能，能夠適應不同的控制需求。在使用時，需要注意避免與強磁場和大電流環境直接接觸，以確保開關的正常工作。
English Introduction
The D-Y69B magnetic switch is a non-contact magnetic switch featuring a direct wiring design with an indicator light. It is suitable for 2-wire circuits, with a lead wire length of 0.5 meters and an operating voltage range of DC10~28V. Based on the principle of electromagnetic induction, the switch controls the circuit s on-off state through changes in the magnetic field. Widely used in industrial automation, it is particularly effective for position detection, stroke monitoring, and motion control of pneumatic cylinders.
The D-Y69B magnetic switch boasts excellent waterproof and dustproof performance with an IP65 protection rating, ensuring stable operation in harsh industrial environments. Its housing is made of aluminum and PC, making it durable and robust. The switch has a mechanical life of up to 2 million cycles and an electrical life of 300,000 cycles, meeting the demands of long-term and high-frequency use.
The installation of the D-Y69B magnetic switch is flexible and can be directly mounted on pneumatic cylinders, allowing users to configure it according to their specific needs. It also features adjustable delay time, which can adapt to various control requirements. When using the switch, it is important to avoid direct contact with strong magnetic fields and high currents to ensure its proper functioning.
磁性開關
AL-44R，AL-43R，AL-42R，AL-41R，AL-17R，AL-13R，AL-11R，AL-09R，D-C80，D-A80，CKD-T2H，LJC2-3/60，LJC1-3/24，QCK2422，CK-3，NJK-5002P， CST-220，CS1-G，CS1-S，CS1-J，CS1-U，CS1-F，D-A73，D-C73，D-Z73，D-A54，D-B54，HX-20R，F(xiàn)D-50R，ZE-135，ZC-230，KT-50R，KT-33R，KT-32R，KT-21R，KT-21RY，KT-20R，KT-16R，KT-15R，KT-11R，KT-07R，KT-06R，KT-03R，KL-3045，P1-1A151，4621A，110E681，YIDA-50，YIDA-40，YIDA-35，YIDA-32，YIDA-31，YIDA-21，YIDA-20，YIDA-16，YIDA-15，YIDA-12，YIDA-11，YIDA-09，YIDA-08，YIDA-07，YIDA-06，YIDA-03，YSD-T3，YS-72，YS-32，YS-07，YS-06，YS-03，YGMB-1A，YC-16，TAIYO-YR101, TCS1-D, TCS1-E, TCS1-F, SR-401,SL-26，MG-12，MR-3019，LN-09D，LN-01D，LN-15T，LS-BD2，LY-D73，LY-67A，LY-63，LY-43-1，LY-43，LY-9D-1，LY-9D，LYD-72R，LYD-50R，LYD-35R，LYD-32R，LYD-31R，LYD-21R，LYD-20R，LYD-16R，LYD-15R，LYD-12R，LYD-11R，LYD-07R，LYD-06R，HWK-23，GA-3，GA-2，GLS-KBI，GLS-KAI，GMK-2A，GMD-2A，GMF-2A，GME-2A，GMT-2A，GMC-2A，GMB-2A，GMA-2A，DX-21R，DX-20R，DX-03R，DSM-2C，D-R731L，D-SM2C，D-A93V，D-A93L，D-A93，D-93A，D-Z80，D-Z73L，D-C73L，D-A73L，D-Y69B，D-Y69A，D-Y59A，D-K59，D-B50，D-H7B，C7Y-28G，C7-Z20G，CK-J2R，CKD-RO，CK-2422，CS-100，CS-80B，CS-50B，CS-32B，CS-30E，CS-9D， AL-72R，AL-30R，AL-21R，AL-20R，AL-15R，AL-07R，AL-03R，AL-02R，AL-01R，AN-72R，AN-50R，AN-36R，AN-32R，AN-31R
AN-22R，AN-21R，AN-20R，AN-11R，AN-10R，AN-07R，AN-06R，AN-03R，AN-01R，
特點 ：
有PP、PVDF材質可適用于強酸堿場所；SUS 304/316金屬材質適用于高溫高壓桶槽。
接線盒規格齊全，有塑料、鋁合金、不銹鋼防爆型，防護等級IP-65以上。
接點容量50W/250VAC SPST或 30W/200VDC SPDT。
接續法蘭有JIS、DIN、ANSI規格；牙口有 NPT、PF、BSP等規格。
有ABS、GL、CR國際船籍認證及Ex防爆認證。
可做多點控制、安裝容易、節省成本。
|
