鉑電阻元件WZPK-563S 供應

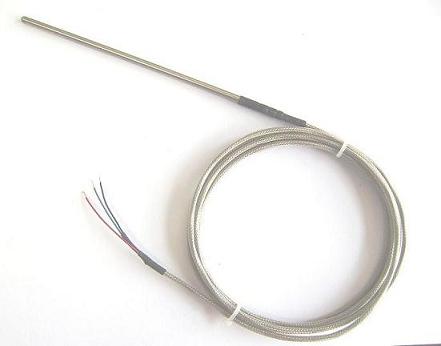

鉑電阻元件 WZPK-563S：精準測溫的可靠選擇
在工業測溫領域，鉑電阻元件憑借其卓越的性能和穩定性，一直是眾多企業的信賴之選。WZPK-563S 鉑電阻元件便是這樣一款高品質的產品，它以精準的溫度測量和可靠的性能，為各類工業應用場景提供了有力支持。
產品特點
WZPK-563S 鉑電阻元件采用優質鉑材料制作，這種材料具有極高的化學穩定性，能夠在多種復雜的工業環境中長期穩定工作，不易受到腐蝕和氧化的影響。其測溫范圍廣泛，能夠滿足從低溫到高溫的多種測溫需求，無論是寒冷的低溫環境，還是熾熱的高溫區域，都能精準地測量溫度，為工業生產過程中的溫度控制提供準確的數據支持。元件的結構設計精巧，體積小巧，便于安裝和集成到各種設備中，能夠適應不同的安裝空間和布局要求，不占用過多空間，同時保證了安裝的便捷性和靈活性。此外，它還具備良好的抗震性能，在工業設備運行過程中產生的振動環境下，依然能夠保持穩定的測量精度，不會因振動而出現測量誤差，確保了溫度測量的連續性和可靠性。
應用場景
WZPK-563S 鉑電阻元件適用于眾多工業領域。在化工行業，它可用于監測反應釜、管道等設備的溫度，確保化學反應在合適的溫度范圍內進行，從而提高生產效率和產品質量，同時保障生產過程的安全性。在電力行業，可用于發電設備的溫度監測，如發電機、變壓器等關鍵設備的溫度測量，及時發現設備運行中的異常溫度變化，預防設備故障，保障電力系統的穩定運行。在食品加工行業，可用于食品烘焙、烹飪等工藝的溫度控制，精確的溫度測量有助于保證食品的質量和口感，符合食品安全標準。在制藥行業，它可用于藥品生產過程中的溫度監測，確保藥品生產符合嚴格的工藝要求，保障藥品的質量和安全性。
WZPK-563S 鉑電阻元件以其卓越的性能和廣泛的應用范圍，成為了工業測溫領域不可或缺的重要工具，為企業的生產過程提供了精準可靠的溫度測量解決方案，助力企業提高生產效率、保障產品質量和生產安全。
Platinum Resistance Element WZPK-563S: A Reliable Choice for Precise Temperature Measurement
In the field of industrial temperature measurement, platinum resistance elements have always been a trusted option for numerous enterprises due to their outstanding performance and stability. The WZPK-563S platinum resistance element is such a high-quality product that provides strong support for various industrial application scenarios with its precise temperature measurement and reliable performance.
Product Features
The WZPK-563S platinum resistance element is made of high-quality platinum material, which is highly chemically stable and can work stably in a variety of complex industrial environments for a long time without being easily corroded or oxidized. It has a wide temperature measurement range, capable of meeting the temperature measurement requirements from low to high temperatures. Whether in cold low-temperature environments or hot high-temperature areas, it can accurately measure temperature and provide precise data support for temperature control in industrial production processes. The structure of the element is designed ingeniously with a small size, making it easy to install and integrate into various equipment. It can adapt to different installation spaces and layout requirements without occupying too much space while ensuring the convenience and flexibility of installation. Moreover, it has good anti-vibration performance and can maintain stable measurement accuracy in the vibration environment generated by the operation of industrial equipment, ensuring the continuity and reliability of temperature measurement.
Application Scenarios
The WZPK-563S platinum resistance element is applicable to many industrial fields. In the chemical industry, it can be used to monitor the temperature of reactors, pipelines, and other equipment to ensure that chemical reactions take place within the appropriate temperature range, thereby improving production efficiency and product quality while ensuring the safety of the production process. In the power industry, it can be used for temperature measurement of key power generation equipment such as generators and transformers, to detect abnormal temperature changes in equipment operation in a timely manner and prevent equipment failures, ensuring the stable operation of the power system. In the food processing industry, it can be used for temperature control in food baking, cooking, and other processes. Accurate temperature measurement helps ensure the quality and taste of food and meets food safety standards. In the pharmaceutical industry, it can be used for temperature monitoring in the pharmaceutical production process to ensure that the production meets strict process requirements and guarantees the quality and safety of pharmaceutical products.
The WZPK-563S platinum resistance element, with its excellent performance and wide range of applications, has become an essential tool in the field of industrial temperature measurement. It provides precise and reliable temperature measurement solutions for industrial production processes, helping enterprises improve production efficiency, ensure product quality, and production safety.
鉑電阻元件
WZPK2-165SA，WZPK2-166SA，WZPK-263S，WZPK-264S，WZPK-265S，WZPK-266S，WZPK2-265SA，WZPK2-266SA，WZPK-363S，WZPK-364S，WZPK-365S，WZPK-366S，WZPK2-365SA，WZPK2366SA，WZPK-463S，WZPK-464S，WZPK-465S，WZPK-466S，WZPK2-465SA，WZPK2466SA，WZPK-563S，WZPK-564S，WZPK-565S，WZPK-566S，WZPK2-565SA，WZPK2566SA，WZPK-173S，WZPK-174S，WZPK-175S，WZPK-176S，WZPK2-175SA，WZPK2-176SA，WZPK-273S，WZPK-274S，WZPK-275S，WZPK-276S，WZPK2-275SA，WZPK2-276SA，WZPK-373S，WZPK-374S，WZPK-375S，WZPK-376S，WZPK2-375SA，WZPK2376SA，WZPK-473S，WZPK-474S，WZPK-475S，WZPK-476S，WZPK2-475SA，WZPK2476SA，WZPK-573S，WZPK-574S，WZPK-575S，WZPK-576S，WZPK2-575SA，WZPK2576SA，WZPM-101U，WZPM-201U，WZPM—002U，WZPM-102U，WZPM-202U，WZPM—001，WZPM-101S，WZPM-201S，WZPM-002，WZPM-102，WZPM-202，WZPM—301，WZP-011S，WZP-012S，WZP-013S，WZP-014S，WZP-015S，WZP-203S，WZP-205S，WZP-018，WZP-0110，WZP-2012，
熱電阻是利用鉑絲的電阻值隨著溫度的變化而變化這一基本原理設計和制作的，按0℃時的電阻值R(℃)的大小分為10歐姆（分度號為Pt10）和100歐姆（分度號為Pt100）等，測溫范圍均為-200~850℃.10歐姆鉑熱電阻的感溫原件是用較粗的鉑絲繞制而成，耐溫性能明顯優于100歐姆的鉑熱電阻，主要用于650℃以上的溫區：100歐姆鉑熱電阻主要用于650℃以下的溫區，雖也可用于650℃以上溫區，但在650℃以上溫區不允許有A級誤差。100歐姆鉑熱電阻的的分辨率比10歐姆鉑熱電阻的分辨率大10倍，對二次儀表的要求相應地一個數量級，因此在650℃以下溫區測溫應盡量選用100歐姆鉑熱電阻。
感溫元件骨架的材質也是決定鉑熱電阻使用溫區的主要因素，見的感溫元件有陶瓷元件，玻璃元件，云母元件，它們是由鉑絲分別繞在陶瓷骨架，玻璃骨架，云母骨架上再經過復雜的工藝加工而成。由于骨架材料本身的性能不同，陶瓷元件適用于850℃以下溫區，玻璃元件適用于550℃以下溫區。近年來市場上出現了大量的厚膜和薄膜鉑熱電阻感溫元件，厚膜鉑熱電阻元件是用鉑漿料印刷在玻璃或陶瓷底板上，薄膜鉑熱電阻元件是用鉑漿料濺射在玻璃或陶瓷底板上，再經光刻加工而成，這種感溫元件僅適用于-70~500℃溫區，但這種感溫元件用料省，可機械化大批量生產，效率高，價格便宜。
就結構而言，鉑熱電阻還可以分為工業鉑熱電阻和鎧裝鉑熱電阻。工業鉑熱電阻也叫裝配鉑熱電阻，即是將鉑熱電阻感溫元件焊上引線組裝在一端封閉的金屬管或陶瓷管內，再安裝上接線盒而成；鎧裝鉑熱電阻是將鉑熱電阻元件，過渡引線，絕緣粉組裝在不銹鋼管內再經模具拉實的整體，具有堅實，抗震，可繞，線徑小，使用安裝方便等優點。
系統組成
（1）熱電阻測溫系統一般由熱電阻、連接導線和顯示儀表等組成。必須注意以下兩點：
①熱電阻和顯示儀表的分度號必須一致
②為了消除連接導線電阻變化的影響，必須采用三線制接法。具體內容參見本篇第三章。
（2）鎧裝熱電阻 鎧裝熱電阻是由感溫元件（電阻體）、引線、絕緣材料、不銹鋼套管組合而成的堅實體，它的外徑一般為φ1~φ8mm，小可達φmm。 與普通型熱電阻相比，它有下列優點：
①體積小，內部無空氣隙，熱慣性上，測量滯后�。�
②機械性能好、耐振，抗沖擊；
③能彎曲，便于安裝
④使用壽命長。
（3）端面熱電阻 端面熱電阻感溫元件由特殊處理的電阻絲材繞制，緊貼在溫度計端面。它與一般軸向熱電阻相比，能更正確和快速地反映被測端面的實際溫度，適用于測量軸瓦和其他機件的端面溫度。
（4）隔爆型熱電阻 隔爆型熱電阻通過特殊結構的接線盒，把其外殼內部爆炸性混合氣體因受到火花或電弧等影 電阻體的斷路修理必然要改變電阻絲的長短而影響電阻值，為此更換新的電阻體為好，若采用焊接修理，焊后要校驗合格后才能使用。
|
