電站測溫用熱電阻WZP-621B 供應

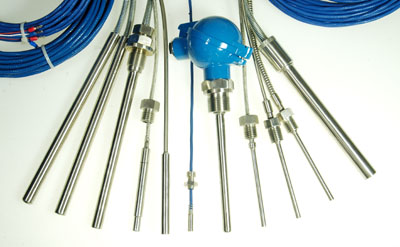

WZP-621B 熱電阻產品介紹
中文介紹
WZP-621B 熱電阻是專為電站測溫需求設計的高精度測溫元件。它采用優質鉑絲作為感溫元件，具有良好的線性度和穩定性，能夠精準測量溫度范圍從 -200℃至 850℃。其結構設計緊湊，防護等級高，適用于電站復雜的運行環境，無論是高溫高壓的汽輪機，還是低溫的冷卻系統，都能穩定可靠地工作。
該熱電阻的接線盒采用全密封設計，有效防止灰塵和水分侵入，延長使用壽命。其引線采用耐高溫、耐腐蝕的材料，確保信號傳輸?shù)姆�(wěn)定性和準確性。安裝方式靈活多樣，可采用螺紋連接、法蘭連接等多種方式，方便用戶根據現場需求進行選擇。
WZP-621B 熱電阻的測溫精度高，重復性好，能夠?yàn)殡娬镜臏囟缺O(jiān)測提供可靠的數據支持，幫助用戶實時掌握設備運行狀態，優化運行參數，保障電站的安全高效運行。
English Introduction
The WZP-621B thermoresistance is a high-precision temperature measuring element specifically designed for power station temperature measurement requirements. It uses high-quality platinum wire as the temperature-sensing element, which provides good linearity and stability, and can accurately measure the temperature range from -200℃ to 850℃.
The structure of the WZP-621B thermoresistance is compactly designed with a high protection rating, making it suitable for the complex operating environment of power stations. Whether it is in the high-temperature and high-pressure steam turbine or the low-temperature cooling system, it can work stably and reliably.
The junction box of this thermoresistance is fully sealed, effectively preventing dust and moisture ingress to extend its service life. The lead wires are made of materials that are resistant to high temperatures and corrosion, ensuring stable and accurate signal transmission. The installation methods are flexible and diverse, with options such as threaded connection and flange connection, allowing users to choose according to the on-site requirements.
With high temperature measurement accuracy and good repeatability, the WZP-621B thermoresistance can provide reliable data support for power station temperature monitoring. It helps users to keep track of the equipment operating conditions in real-time, optimize operating parameters, and ensure the safe and efficient operation of the power station.
電站測溫用熱電阻
WZC-130B，WZP-220B，WZP-221B，WZP-230B，WZP-231B，WZP2-220B，WZP2-221B，WZP2-230B，WZP2-231B，WZP-220AB，WZP2-220AB。WZC-220B，WZC-230B，WZC-220AB，WZP-320B，WZP-321B，WZP-330B，WZP-331B，WZP2-320B，WZP2-321B，WZP2-330B，WZP2-330B，WZC-320B，WZC-320B，WZP-420B，WZP-421B，WZP-430B，WZP-431B，WZP2-420B，WZP2-421B，WZP2-430B，WZP2-431B，WZP-42AB，WZP2-42AB，WZC-420B，WZC-430B，WZP-420B，WZP-421B，WZP-430B，WZP-430B，WZP-431B，WZP2-420B，WZP2-421B，WZP2-430B，WZP2-431B，WZP-42AB，WZP2-42AB，WZP-420B，WZC-430B，WZP-621B，WZP-621AB，WZP-631B，WZP2 -621B，WZP2 -621B，WZP2 -631B，WZP-621B，WZP-631B，WZP-621B，WZP2 -631B，WZP-621AB，WZP2-621AB，WZP-002，WZP-003，WZP-003A，WZCM-201，WZPM-201，WZPM-201，WZP-270S，WZP-26S，WZP-236SB，
量程規格
名 稱 分度號 測溫范圍 ℃ 精度等級 允 差Δt
鎳鉻－鎳硅熱電偶 K 0～800 2 ±2.5℃或 ±0.75％t
鎳鉻－銅鎳熱電偶 E 0～600 2 ±2.5℃或 ±0.75％t
鉑熱電阻 Pt100 -200～500 B ±（0.3＋0.005|t|）
注：t為感溫元件實測溫度或?qū)崪y溫度的值。
□公稱壓力
一般是指在常溫下，保護管所能承受的靜態外壓而不破裂，試驗壓力一般采用公稱壓力的1.5倍。實際上，允許工作壓力不僅與保護管材料、直徑、壁厚有關，而且還與其結構形式、安裝方法、置入深度以及被測介質的流速、種類有關。
□熱電偶絕緣電阻
常溫絕緣電阻的試驗電壓為直流500Ｖ。測量常溫絕緣電阻的大氣條件為：溫度15～35℃，相對濕度45％RH，大氣壓力86～106kPa。
對于長度超過1米的熱電偶，它的常溫絕緣電阻值與其長度的乘積應不小于100MΩ•m，
即：Rr•L＞100MΩ•mL＞1m
式中：Rr-熱電偶的常溫絕緣電阻值，MΩ；
L－熱電偶的長度，m。
對于長度等于或不足1米的熱電偶，它的常溫絕緣電阻值應不小于100MΩ。
□熱電阻絕緣電阻
常溫絕緣電阻的試驗電壓可取直流10～100Ｖ任意值，環境溫度應在15～35℃范圍內，相對濕度應不大于80％RH，常溫絕緣電阻值應不小于100MΩ。
□熱電阻允許通過電流
通過鉑電阻的測量電流大不超過5mＡ。
|
