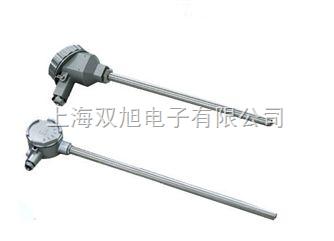

室內用雙支鉑熱電阻WRE-240A 價格
產品概述
室內用雙支鉑熱電阻WRE-240A是一款高精度溫度測量傳感器，專為工業及實驗室環境設計。其核心采用鉑金屬感溫元件，通過雙支繞線結構實現穩定可靠的溫度檢測，適用于-200℃至500℃的寬溫度范圍。產品結構緊湊，安裝便捷，可同時輸出兩組獨立溫度信號，滿足多點測溫或冗余備份需求，特別適合對數據一致性和安全性要求較高的場合。
WRE-240A Indoor Dual-Prong Platinum Thermal Resistor is a high-precision temperature sensor designed for industrial and laboratory environments. Featuring a platinum sensing element with dual-wire configuration, it ensures stable and reliable temperature measurement within a broad range of -200℃ to 500℃. The compact design allows for easy installation, while dual independent outputs enable simultaneous multi-point monitoring or redundant backup, making it ideal for applications demanding data consistency and reliability.
核心特性
WRE-240A的感溫元件采用均勻繞制工藝，確保溫度梯度下的測量精度，輸出信號線性度高。產品具備防潮、防震設計，適應復雜室內環境；外殼采用耐腐蝕材質，延長使用壽命。與顯示儀表配套使用時，需連接補償導線，兼容主流工業控制系統，便于集成。
The WRE-240A utilizes precision-wound platinum elements to deliver high linearity and accuracy even under temperature gradients. Its robust construction includes moisture-proof and shock-resistant features, suitable for challenging indoor conditions. The corrosion-resistant housing enhances durability. When paired with display instruments via compensation leads, it seamlessly integrates with industrial control systems.
應用場景
廣泛應用于暖通空調、電力設備、化工反應器等需要實時溫度監控的領域。雙支設計可分別接入不同儀表，實現數據比對或故障冗余，提升系統可靠性。
Common applications include HVAC systems, power equipment, and chemical reactors where real-time temperature monitoring is critical. The dual-prong design supports data validation through separate instrument connections, enhancing system fault tolerance.
技術參數
基本誤差控制在合理范圍內，環境適應性符合常規工業要求。負載電阻支持三線制或二線制接線方式，工作電壓兼容標準工業電源。
The product maintains minimal baseline error and adapts to standard industrial environments. It supports both 3-wire and 2-wire connections, with voltage compatibility across common industrial power supplies.
服務支持
提供定制化選項，如保護管材質與長度調整，滿足不同安裝需求。
Customization options include protective tube materials and lengths to accommodate diverse installation requirements.
引用來源：17111622
室內用雙支鉑熱電阻
WREK-440，WRE2-740，WRN2-740，WRN2-440A，WRNK-240，WREK2-240，WRNK-841n*i，WRNK-842n*i，WRE-240A，WREK-841n*I，WREK-842n*i，WRN2-240A，WREK2-440，WRN-640，WRN2-640，WRN-740，WRE-440A，WRNK-440，WRE-640，WRE2-640，WREK-842n*D，WZP-64SB，SBWR-4280/8413KD，XMTA-100，
主要特性
1、輸出4~20mA或0~10mA標準恒流信號，與被測溫度成線性關系，與負載電阻大小無關。
2、輸出高阻擾抗信號、無射頻干擾影響。
3、具有防爆、防震、防潮、防熱、防有害氣體的功能。
4、帶電源極性接反保護功能。
5、具有較強的遠傳功能，安裝使用極為方便。
主要技術指標
1、銅、鉑熱電阻：-50℃~100℃：-20~600℃(跨度≥50℃)
2、熱電偶：0~1800℃(跨度≥100℃)
3、輸出信號：4~20mA(可與DDZ－III儀表配套使用)
0~l0mA(可與DDZ－Ⅱ儀表配套使用)
4、基本誤差：士0.5％，士0.2％．
5、溫度漂移：≤0.01％/1℃
6、環境溫度：-30~70℃ 相對濕度≤95%
7、負載電阻：三線制 0~10mA：RL≤1500Ω
二線制4~20mA：RL≤750Ω
8、標準工作電壓：24VDC；允許工作電壓范圍：17~35V；標準導軌式無特別說明按220V AC供電
9、外形尺寸：φ44×18mm 重量：50g；導軌式：105X75X22.5mm(DIN35導軌)
|
