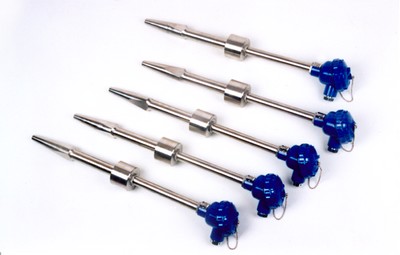

室內用雙支鉑熱電阻XMTA-100 供應
產品概述
室內用雙支鉑熱電阻XMTA-100是一款高精度溫度測量傳感器，專為工業及實驗室環境設計。該產品采用優質鉑電阻材料（Pt100），具備雙路獨立輸出功能，可同時提供兩路溫度信號，適用于需要冗余備份或多點監測的場景。其緊湊的結構設計和穩定的性能，確保在-200℃至+500℃范圍內實現精準測溫，尤其適合室內環境中的液體、氣體及固體表面溫度監測。1415
技術特點
XMTA-100采用進口薄膜電阻元件，抗振性能優異，機械強度高，耐壓性能出色。雙支獨立感溫元件設計支持同步輸出兩組信號，便于系統交叉驗證或冗余控制。產品配備防水防濺接線盒，適配多種安裝方式（如螺紋固定或法蘭連接），安裝靈活且維護便捷。常溫絕緣電阻大于100MΩ，確保長期穩定運行。熱響應時間快，可快速捕捉溫度變化，滿足實時監控需求。38
應用場景
該產品廣泛應用于電力、化工、冶金等行業的室內設備測溫，如鍋爐、管道、反應釜等。在實驗室中，可用于恒溫箱、培養箱等高精度溫控設備。其雙支設計特別適合關鍵測溫點，如聯鎖控制系統或需備用監測的場合，避免因單點故障導致數據丟失。此外，六線制補償技術進一步減少引線電阻干擾，提升測量準確性。1012
服務與優勢
我們提供定制化服務，可根據需求調整保護管材質（如304不銹鋼）和尺寸規格。產品經嚴格測試，確保每支熱電阻的線性度與重復性符合工業要求。技術支持團隊可為客戶提供安裝指導及故障排查服務，幫助優化測溫方案。通過優化生產工藝，XMTA-100在性價比和可靠性上表現突出，是溫度測量領域的理想選擇。919
Product Overview
The indoor dual-element platinum RTD XMTA-100 is a high-precision temperature sensor designed for industrial and laboratory environments. Featuring dual-channel independent outputs (Pt100), it provides simultaneous temperature signals for redundancy or multi-point monitoring. Its compact structure and stable performance ensure accurate measurements within -200°C to +500°C, ideal for liquids, gases, and solid surfaces in indoor applications. 1417
Key Features
XMTA-100 utilizes imported thin-film resistor elements with excellent vibration resistance and mechanical durability. The dual sensing cores allow cross-verification or backup control. Equipped with a waterproof junction box, it supports flexible installation (threaded or flanged). With a fast thermal response and insulation resistance exceeding 100MΩ, it guarantees long-term stability and real-time monitoring capabilities. 38
Applications
This product is widely used in power plants, chemical reactors, and metallurgical equipment for indoor temperature measurement. In laboratories, it suits incubators and constant-temperature chambers. The dual-element design is critical for fail-safe systems, ensuring uninterrupted data collection. Six-wire compensation minimizes lead resistance errors for enhanced accuracy. 1012
Service & Benefits
Customization options include protective tube materials (e.g., 304 stainless steel) and dimensions. Rigorous testing ensures linearity and repeatability. Our technical team offers installation support and troubleshooting to optimize temperature solutions. Balancing cost-efficiency and reliability, XMTA-100 stands out as a practical choice for diverse測溫needs. 919
室內用雙支鉑熱電阻
WREK-440，WRE2-740，WRN2-740，WRN2-440A，WRNK-240，WREK2-240，WRNK-841n*i，WRNK-842n*i，WRE-240A，WREK-841n*I，WREK-842n*i，WRN2-240A，WREK2-440，WRN-640，WRN2-640，WRN-740，WRE-440A，WRNK-440，WRE-640，WRE2-640，WREK-842n*D，WZP-64SB，SBWR-4280/8413KD，XMTA-100，
主要特性
1、輸出4~20mA或0~10mA標準恒流信號，與被測溫度成線性關系，與負載電阻大小無關。
2、輸出高阻擾抗信號、無射頻干擾影響。
3、具有防爆、防震、防潮、防熱、防有害氣體的功能。
4、帶電源極性接反保護功能。
5、具有較強的遠傳功能，安裝使用極為方便。
主要技術指標
1、銅、鉑熱電阻：-50℃~100℃：-20~600℃(跨度≥50℃)
2、熱電偶：0~1800℃(跨度≥100℃)
3、輸出信號：4~20mA(可與DDZ－III儀表配套使用)
0~l0mA(可與DDZ－Ⅱ儀表配套使用)
4、基本誤差：士0.5％，士0.2％．
5、溫度漂移：≤0.01％/1℃
6、環境溫度：-30~70℃ 相對濕度≤95%
7、負載電阻：三線制 0~10mA：RL≤1500Ω
二線制4~20mA：RL≤750Ω
8、標準工作電壓：24VDC；允許工作電壓范圍：17~35V；標準導軌式無特別說明按220V AC供電
9、外形尺寸：φ44×18mm 重量：50g；導軌式：105X75X22.5mm(DIN35導軌)
|
