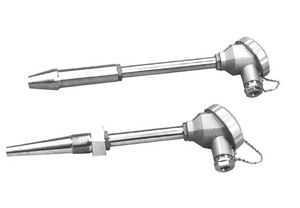

套管式熱電阻WZCN-230 廠家
產品概述
套管式熱電阻WZCN-230是一款專為高溫、強磨損及腐蝕性環境設計的工業溫度測量傳感器。該產品采用特殊合金材質的外保護管，結合耐磨涂層技術，能夠在化工廠、冶煉廠、火電廠等嚴苛工況下長期穩定工作。其核心測溫元件選用高精度鉑電阻（Pt100），確保溫度測量的準確性和可靠性。產品結構緊湊，安裝靈活，支持螺紋或法蘭連接方式，適用于管道、反應釜及其他工業設備的溫度監測需求。24
產品特點
WZCN-230熱電阻的耐磨保護管硬度達HRC58-62，可耐受0-600℃的高溫及顆粒物沖刷，延長了使用壽命。耐腐蝕型涂層能抵抗大多數化學介質的侵蝕（除熔融鋰、鉀、鈉等極端物質），適用于0-250℃的酸性或堿性環境。產品采用鎧裝內芯設計，兼具機械強度與抗振性能，同時配備防水接線盒（防護等級IP65），適合戶外或潮濕環境使用。其響應速度快，能實時反饋溫度變化，滿足工業自動化控制的精度要求。37
技術參數
測溫范圍覆蓋-200℃至500℃，鉑電阻分度號為Pt100，精度等級符合工業通用標準。保護管直徑可選φ12mm或φ16mm，插入深度可根據客戶需求定制（如250mm、500mm等）。電氣接口為標準M20×1.5螺紋，絕緣電阻大于100MΩ（常溫下），確保信號傳輸穩定。產品無需額外補償導線，可直接與顯示儀表或控制系統連接，簡化安裝流程。514
應用場景
WZCN-230廣泛應用于水泥窯尾、循環流化床鍋爐、磨煤機等高磨損場景，以及石油化工、制藥等腐蝕性介質環境。其耐磨特性特別適合長期接觸顆粒物流體的設備測溫，如球磨機進出口溫度監測，典型使用壽命可達2年以上。產品也可用于蒸汽管道、液體儲罐等常規工業測溫場景， versatility。415
Introduction
The sheathed thermoresistor WZCN-230 is an industrial-grade temperature sensor designed for high-temperature, abrasive, and corrosive environments. Its robust outer protection tube, made of specially alloyed materials with wear-resistant coatings, ensures stable performance in demanding conditions such as chemical plants, smelters, and thermal power plants. The Pt100 platinum resistance core guarantees accurate temperature measurement, while the compact structure supports flexible installation via threaded or flanged connections for pipelines, reactors, and other equipment.
Key Features
The WZCN-230 features a protective tube with hardness up to HRC58-62, capable of withstanding temperatures up to 600°C and prolonged particle impact. Its corrosion-resistant coating is effective against most chemical media (except molten lithium, potassium, or sodium). The armored inner core enhances mechanical durability and vibration resistance, complemented by a waterproof junction box (IP65 rating) for outdoor use. The fast response time enables real-time temperature monitoring in automated systems.
Technical Specifications
With a measuring range of -200°C to 500°C and Pt100 sensor, the WZCN-230 offers reliable precision. Customizable insertion depths (e.g., 250mm, 500mm) and standard M20×1.5 electrical interfaces simplify integration. The insulation resistance exceeds 100MΩ at room temperature, ensuring stable signal transmission without additional compensation wires.
Applications
Ideal for cement kiln exhausts, fluidized bed boilers, and coal mills, this thermoresistor excels in high-wear applications. It is also suited for corrosive media in petrochemicals and pharmaceuticals, with a typical service life exceeding two years in abrasive environments like ball mill temperature monitoring. 1920
