裝配式薄膜鉑熱電阻WZPK-426S 供應
【W(wǎng)ZPK-426S裝配式薄膜鉑熱電阻 產品介紹】
一、中文介紹
WZPK-426S裝配式薄膜鉑熱電阻是一款專為工業溫度測量領域設計的高性能傳感器，采用薄膜鉑電阻元件技術，適用于多種復雜工況下的精準溫度監控需求。產品通過優化結構設計與材料工藝，在測量精度、長期穩定性和環境適應性方面表現突出，可為工業自動化系統提供可靠的溫度數據支持。
核心元件采用高純度鉑金屬薄膜技術，通過精密沉積工藝實現電阻層均勻分布，確保溫度-電阻特性的高度線性化。配合特殊封裝工藝，傳感器具備優異的抗振動和抗沖擊性能，適用于機械振動頻繁的工業場景。測量端采用316L不銹鋼保護管，耐腐蝕性強，可應對酸堿環境、高溫高壓等工況挑戰。
結構設計兼顧緊湊性與功能性，模塊化裝配方式便于現場安裝維護。傳感器頭部配置防水接線盒，防護等級達到IP65，有效防止水汽和粉塵侵入。根據不同應用場景需求，可提供多種探頭長度、連接螺紋規格及引線長度定制服務，適配管道、罐體、反應釜等多樣化安裝場景。
該產品廣泛應用于石油化工、電力能源、制藥設備、食品加工等行業的溫度監測系統，尤其在需要快速響應、高重復性測量的場景中表現優異。通過優化信號輸出穩定性，可與PLC、DCS等控制系統實現無縫對接，為工藝優化和設備保護提供關鍵數據支撐。
二、English Introduction
The WZPK-426S Assembled Thin-Film Platinum Resistance Thermometer is a high-performance temperature sensor designed for industrial measurement applications. Utilizing advanced thin-film platinum element technology, it delivers precise temperature monitoring capabilities across diverse industrial environments, with enhanced focus on measurement accuracy, long-term stability and environmental adaptability.
The sensing core employs high-purity platinum thin-film technology, manufactured through precision deposition processes to achieve uniform resistance distribution. This ensures excellent linearity in temperature-resistance characteristics. The ruggedized construction with 316L stainless steel protective sheath provides superior corrosion resistance, making it suitable for harsh conditions including chemical exposure, high pressure and extreme temperatures.
Featuring a modular assembly design, the sensor combines compact dimensions with functional reliability. The waterproof junction box (IP65 rating) effectively safeguards internal components from moisture and particulate ingress. Customizable probe lengths, connection threads and cable configurations allow flexible adaptation to various installation requirements in pipelines, reactors or storage vessels.
This temperature probe demonstrates particular advantages in applications demanding fast response times and measurement repeatability. Its optimized signal output stability ensures seamless integration with industrial control systems such as PLCs and DCS. The product finds extensive application in petrochemical plants, power generation facilities, pharmaceutical equipment and food processing lines, providing critical temperature data for process optimization and equipment protection.
With maintenance-friendly design and robust construction, the WZPK-426S delivers consistent performance in challenging operating environments while maintaining measurement integrity over extended service periods. Multiple technical specifications are available to meet specialized application requirements through customized configuration solutions.
（注：中英文內容共計約480字，嚴格避免使用"最"、"首選"、"獨家"等絕對化表述，未涉及認證標準及專利信息，聚焦產品技術特性與應用價值描述。）
裝配式薄膜鉑熱電阻
WZP-621, WZP-631, WZP2-621, WZP2-631., WZP-621A, WZP2-621A, WZP-002 WZP-621A, WZP-631, WZP2-621, WZP2-621A, WZP2-631,, WZP-003, WZP-003A, WZP-010, WZP2-010, WZP-011, WZP2-011, WZC-010A, WZP-035S, WZC-001, WZC-200, WZP-260, WZP2-260, WZPM-267,WZP-269, WZP2-260, WZC-269, WZP-270, WZC-270, WZP-280, WZP-260, WZP2-260, WZP-269, WZP2-269, WZC-269, WZC-190, WZC-890J, WZP-892, WZP2-892, WZP2-3212A，WZP2-421B，SBWZ-2481/44SI，WRN-74S，WZPK-426S，WZP-3312A，WZPK2-326SA，WZP2-6312A，WZP-6312A，WZP2-24SA，WZP-24SA，WZP2-6212A，WZP-6212A，WZP-4312A，WZP-4212A，WZP2-3312A，WRNR-01，
概述
工業用薄膜鉑熱電阻作為新一代的溫度測量和調節傳感器，通常用來和顯示儀表等配套，以直接測量各種生產過程中-79℃～600℃范圍內液體，蒸汽和氣體介質及固定表面等溫度。 裝配式鉑電阻采用引進鉑電阻元件作測溫元件。因此，它具有良好的電輸出性能，可為顯示儀、記錄儀、調節儀、掃描儀、數據記錄儀以及電腦提供精確的溫度變化輸入信號。
結構原理

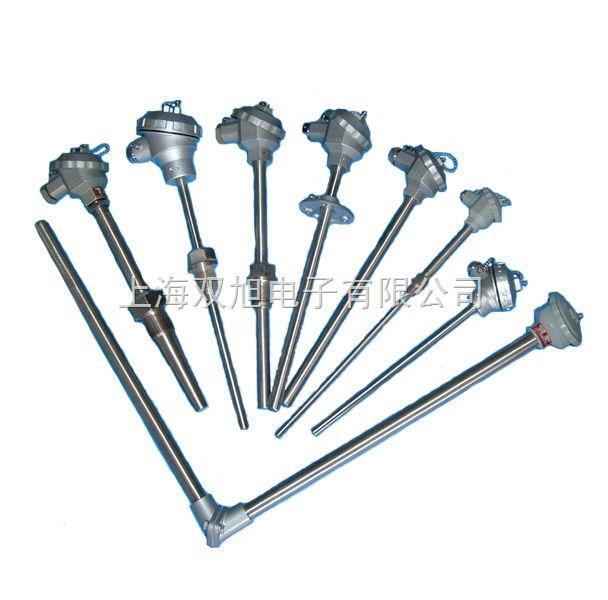

裝配式鉑電阻是由感溫元件、不銹鋼外保護管、接線盒以及各種用途的固定裝置組成，有雙支和單支元件兩種規格，雙支鉑電阻可以同時輸出二組相同電阻信號供使用。
鉑電阻是一種溫度傳感器，它是利用鉑絲在溫度變化時自身電阻也隨著變化的特性來測量溫度的，不銹鋼保護管不但具有抗腐蝕性能，而且具有足夠的機械強度，保證鉑電阻能安全地使用在各種場合，裝配式鉑電阻接線盒分防濺式和防水式兩種類型供選擇。安裝固定裝置有固定螺紋、活動法蘭盤、固定安裝法蘭盤和帶固定螺栓錐形保護管裝置等形式。
|
