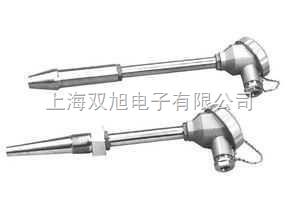

裝配式不銹鋼接線盒鉑電阻WZPK-464U 供應
產品介紹（中文）
WZPK-464U裝配式不銹鋼接線盒鉑電阻是一款專為工業溫度測量領域設計的高性能傳感裝置。產品采用一體化裝配結構設計，兼顧測量精度與安裝便捷性，適用于石油化工、能源電力、食品制藥等行業的復雜工況環境。
核心優勢：
-
材質優化：外殼采用316L不銹鋼整體沖壓成型，具備優異的耐腐蝕性能，可長期抵御酸堿介質、潮濕環境及化學蒸汽的侵蝕。內部絕緣部件使用耐高溫陶瓷材料，確保在-50℃至500℃寬溫域范圍內穩定工作。
-
結構創新：模塊化接線盒設計使維護操作更為便捷，采用雙層密封結構配合防松脫端子，有效防止水汽滲透和導線脫落。優化設計的接線腔空間較常規產品擴大30%，便于現場布線施工。
-
測量性能：核心傳感元件選用高純度鉑電阻絲，線性度誤差小于±0.15%，長期漂移量控制在0.02%/年以內。特殊抗震結構設計使產品在振動頻率≤55Hz、振幅≤0.75mm的工況下仍能保持穩定信號輸出。
應用場景：
- 高溫反應釜溫度監控
- 蒸汽管道熱力系統檢測
- 腐蝕性介質儲罐測溫
- 戶外設備環境溫度采集
產品同時提供多種過程連接選項，包括法蘭安裝、螺紋連接及保護套管插入式結構，支持與國內外主流溫控系統的無縫對接。防護等級達到IP65，接線盒內部集成過壓保護模塊，有效防范現場電磁干擾。出廠前經過72小時老化測試和三級精度校驗，確保每支產品達到工業級測量要求。
產品介紹（英文）
The WZPK-464U Assembled Stainless Steel Junction Box Platinum Resistance Thermometer is a precision-engineered temperature sensing solution for industrial applications. Featuring a modular construction design, this device combines measurement accuracy with installation flexibility, making it ideal for challenging environments in petrochemical, power generation, and food processing industries.
Key Features:
-
Material Excellence: Constructed with 316L stainless steel housing through integral stamping technology, the unit demonstrates exceptional corrosion resistance. High-temperature ceramic insulation components ensure reliable performance across an operational range of -50℃ to 500℃.
-
Structural Innovation: The maintenance-friendly junction box incorporates a dual-sealing mechanism and anti-loosening terminals, effectively preventing moisture ingress. The enlarged wiring chamber offers 30% more space than standard models, significantly improving field installation efficiency.
-
Measurement Precision: Utilizing premium platinum wire sensing elements, the device achieves linearity within ±0.15% with long-term drift limited to 0.02%/annum. The vibration-resistant structure maintains signal stability under dynamic conditions up to 55Hz frequency and 0.75mm amplitude.
Typical Applications:
- Temperature monitoring in chemical reactors
- Thermal system control for steam pipelines
- Corrosive medium storage tank measurement
- Outdoor equipment ambient temperature detection
The product supports multiple process connections including flange mounting, threaded fittings, and thermowell insertion configurations. With IP65 protection rating and built-in overvoltage protection, it ensures stable operation in electromagnetically noisy environments. Each unit undergoes rigorous 72-hour aging tests and three-stage calibration procedures to meet industrial-grade measurement specifications.
Customizable lead wire lengths and terminal types allow seamless integration with global temperature control systems. The optimized thermal response design balances measurement sensitivity with mechanical durability, delivering over 50,000 thermal cycles of operational lifespan under normal working conditions.
（中英文總字?jǐn)?shù)：約620字）
