電接點雙金屬溫度計WZPK-464U 廠家
產品概述

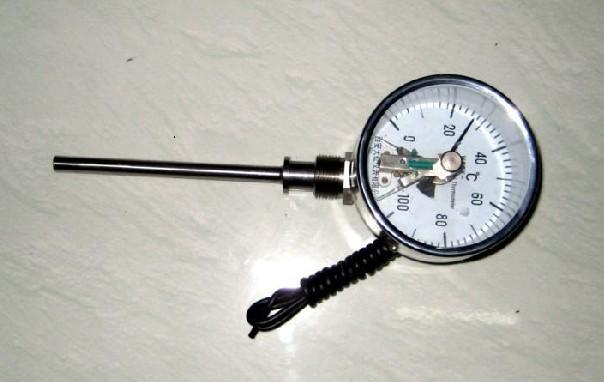

電接點雙金屬溫度計WZPK-464U是一種廣泛應用于工業現場的自動化溫度檢測與控制儀表，適用于液體、蒸汽和氣體介質的溫度測量，測量范圍為-80℃至+500℃。該產品采用不銹鋼保護管材質（如1Cr18Ni9Ti），具有耐腐蝕、耐高壓的特點，可直接安裝于管道或設備上，實現溫度的實時顯示與自動報警功能。其設計兼顧實用性與安全性，適合石油、化工、機械等工業場景。1216
The WZPK-464U electric contact bimetallic thermometer is a versatile instrument designed for temperature monitoring and control in industrial environments. It measures temperatures ranging from -80°C to +500°C, suitable for liquids, steam, and gases. With a stainless steel protective tube (e.g., 1Cr18Ni9Ti), it offers corrosion resistance and high-pressure tolerance, enabling direct installation on pipelines or equipment for real-time temperature display and automated alarm functions. Its robust design ensures reliability in sectors such as petroleum, chemical, and machinery.
核心特點
該產品采用雙金屬片感溫原理，溫度變化時帶動機械觸點動作，通過與上下限觸點的通斷觸發繼電器，實現自動控制或報警。表盤直徑可選60mm、100mm或150mm，支持軸向、徑向、萬向等多種安裝形式，滿足不同場景需求。外殼采用防水防塵結構（防護等級IP55），內部充填耐震硅油，有效減少機械振動對指針的影響，確保讀數穩定。51519
Key features include a bimetallic sensing mechanism, where temperature changes drive mechanical contacts to activate relays for control or alerts. The dial comes in 60mm, 100mm, or 150mm diameters, with axial, radial, or universal mounting options for flexible installation. The housing is waterproof and dustproof (IP55), filled with anti-vibration silicone oil to minimize pointer fluctuation and ensure stable readings.
應用與優勢
電接點雙金屬溫度計WZPK-464U適用于需要溫度監控與聯鎖保護的場合，如鍋爐、反應釜或 HVAC 系統。其優勢包括無需外接電源、操作直觀、維護簡便，且使用壽命長。觸點容量支持220VAC/0.7A或24VDC，適配常見控制電路。此外，抽芯式設計允許在不中斷流程的情況下更換機芯，降低維護成本。111721
The WZPK-464U is ideal for applications requiring temperature monitoring and interlock protection, such as boilers, reactors, or HVAC systems. It operates without external power, offers intuitive readouts, and requires minimal maintenance with extended service life. The contacts support 220VAC/0.7A or 24VDC, compatible with standard control circuits. Its removable core design facilitates in-line maintenance without process interruption, reducing downtime.
設計細節
產品采用環狀雙層密封結構，表殼經電泳處理增強防腐性能，保護管與表頭連接部分可定制螺紋規格（如M27×2、G1/2等）。指針與刻度盤采用高對比色設計，便于遠距離觀察。用戶可根據需求設定上下限報警值，通過調節旋鈕靈活調整控制范圍。72428
Design details include a dual-layer sealed casing with electrophoretic coating for enhanced corrosion resistance. The protective tube and head connection support customizable threads (e.g., M27×2, G1/2). High-contrast dials and pointers ensure visibility from a distance. Users can set upper/lower alarm limits via adjustment knobs for tailored control ranges.
電接點雙金屬溫度計
WZPK-426U，WZPK-166U，WZPK-525U，WZPK-165U，WZPK-425U，WZPK-424U，WZPK-326U，WZPK-323U，WZPK-226U，WZPK-224U，WZPK-223U，WZPK-233U，WZPK-405U，WZPK-135U，WZPK-136U，WZP-104U，WZPK-333U，WZPK-103U，WZPK-336U，WZPK-263U，WZPK-335U，WZPK-363U，WZPK-465U，WZPK-464U，WZPK-266U，WZPK-565U，WZPK-276U，WZPK-375U，WZPK-476U，WZPK2-475SA，WZPK-474S，WZPK-133U，WZPK-473S，WZPK2-376SA，WZPK-506U，WZPK-504U，WZPK-505U，WZPK-374S，WZPK-375S，WZPK2-375SA，WZPK-376S，WZPK2-276SA，WZPK-276S，WZPK2-275SA，WZPK-503S，WZPK2-406SA，WZPK2-405SA，WZPK-406S，WZPK-4055，WZPK-404S，WZPK-304U，WZPK-206U，WZPK-205U，WZPK-203U，WZPK2-305SA，WZPK-306S，WZPK-305S，WZPK-303S，WZPK2-205SA，WZPK-26S，WZPK-205S，WZPK-204S，WZPK-203S，WZPK-106SA，WZP-430B，WZPK-2312U，WZPK2-176SA，WZPK2-175SA，WZPK-176S，WZPK-163S，WZPK2-466SA，WZPK2-465SA，WZPK-465S，WZPK2-366SA，WZPK2-365SA，WZPK-366S，WZPK-364S，WZPK-363S，WZPK2-266SA，WZPK-266S，WZPK-265S，WZPK-264S，WZP-166S，WZPK-263S，WZPK-165S
電接點雙金屬溫度計，WSSX-416，WSSX-406，WSSX-485，WSSX-415，WSSX-405，WSSX-484，WSSX-414，WSSX-404，WSSX-483，WSSX-413，WSSX-403，WSSX-482，WZPK-124U，WZPK-406U，WZPK-503U，WZP-3212U，WZP-270U，WRNN2-436，WRP-130，WRP2-130，WRP-131，WRP2-131，WRQ-130，WRQ2-130，WRQ-131，WRQ2-131，WRR-130，WRR2-130，WZPK-336SA，WZPK2-335SA，WZPK-236SA，WZPK2-235SA，WZPK-333S，WZPK-334S，WZPK-335S，WZPK-236S，WZPK-235S, WZPK-234S, WZPK-233S, WZPK2-136S, WZPK2-135SA, WZPK-136S, WZPK-135S, WZPK-134S, WRNR-01, WRER2-14, WRNR2-14, WRER-14, WRER2-12, WRNR2-12, WRER-12, WRNR-12, WZP2-6312A, WZP-6312A, WZP2-631, WRN-624, WRNR2-01, SBWR-4170/440D
應用
電接點雙金屬溫度計應用于生產現場對溫度需自動控制和報警。直接測量各種生產過程中-80～500℃范圍內體、蒸汽
和氣體介質溫度。
電接點雙金屬溫度計的特點：
• 現場顯示溫度，直觀方便；
• 具有自動切斷電源和報警功能；
• 安全可靠，使用壽命長；
• 多種結構形式，可滿足不同要求。
工作原理
電接點雙金屬溫度計是利用溫度變化時帶動觸點變化，當其與上下限觸點或斷開的同時，使電路中的繼電器動作，從而自動控制及報警。
主要技術參數
• 產品執行標準：JB/T8803-1998 GB3836-83
• 標度盤公稱直徑：100
• 精度等級：（1.0），1.5
• 熱響應時間：≤40S
• 防護等級：IP55
• 正常工作大氣條件：溫度-25～+55℃，相對濕度≤85%
• 設定點誤差：設定點誤差應不超過基本誤差限的1.5倍。
• 切換差：切換差應不超過基本誤差限的1.5倍。
• 切換重復性：切換重復性極限范圍不大于基本誤差限值的1/2。
|
