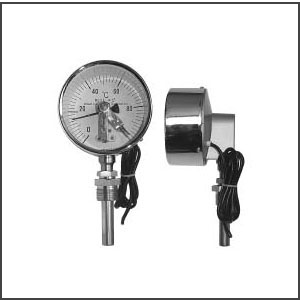

電接點雙金屬溫度計WRNR-12 供應
產品介紹（中文）
WRNR-12型電接點雙金屬溫度計是一種廣泛應用于工業生產現場的溫度測量?jī)x表。它能夠直接測量液體、蒸汽和氣體介質的溫度，適用于-80℃至500℃的溫度范圍。該溫度計采用雙金屬片作為感溫元件，當溫度變化時，雙金屬片會發生形變，從而帶動指針轉動，實現溫度的直觀顯示。
WRNR-12型溫度計具有多種結構形式，能夠滿足不同工況下的安裝需求。其表盤直徑為100毫米，讀數清晰，便于現場操作人員直接觀察。此外，該溫度計還具備自動切斷電源和報警功能，能夠在溫度達到預設的上下限時，通過觸點動作觸發繼電器，實現自動控制和報警，確保生產過程的安全性和穩定性。
在性能方面，WRNR-12型電接點雙金屬溫度計的精度等級為1.0級或1.5級，熱響應時間不超過40秒，防護等級達到IP55，能夠在-25℃至55℃的環境溫度和相對濕度不超過85%的條件下正常工作。其設定點誤差不超過基本誤差限的1.5倍，切換差和切換重復性也均在合理范圍內，確保了測量的準確性和可靠性。
Product Introduction（English）
The WRNR-12 type bimetallic thermometer with electrical contact is a widely used temperature measuring instrument in industrial production fields. It can directly measure the temperature of liquid, steam, and gas media within the range of -80℃ to 500℃. This thermometer uses a bimetallic strip as the temperature-sensing element. When the temperature changes, the bimetallic strip deforms, causing the pointer to rotate and providing an intuitive display of the temperature.
The WRNR-12 type thermometer is available in various structural forms to meet the installation requirements of different working conditions. With a dial diameter of 100 millimeters, it offers clear readings that are easy for on-site operators to observe. In addition, this thermometer is equipped with an automatic power cut-off and alarm function. When the temperature reaches the preset upper or lower limit, the contact action triggers a relay to achieve automatic control and alarm, ensuring the safety and stability of the production process.
In terms of performance, the WRNR-12 type bimetallic thermometer with electrical contact has an accuracy class of 1.0 or 1.5, a thermal response time of no more than 40 seconds, and a protection rating of IP55. It can operate normally under environmental temperatures ranging from -25℃ to 55℃ and relative humidity not exceeding 85%. The set-point error does not exceed 1.5 times the basic error limit, and the switching difference and switching repeatability are both within reasonable ranges, ensuring the accuracy and reliability of the measurement.
電接點雙金屬溫度計
WZPK-426U，WZPK-166U，WZPK-525U，WZPK-165U，WZPK-425U，WZPK-424U，WZPK-326U，WZPK-323U，WZPK-226U，WZPK-224U，WZPK-223U，WZPK-233U，WZPK-405U，WZPK-135U，WZPK-136U，WZP-104U，WZPK-333U，WZPK-103U，WZPK-336U，WZPK-263U，WZPK-335U，WZPK-363U，WZPK-465U，WZPK-464U，WZPK-266U，WZPK-565U，WZPK-276U，WZPK-375U，WZPK-476U，WZPK2-475SA，WZPK-474S，WZPK-133U，WZPK-473S，WZPK2-376SA，WZPK-506U，WZPK-504U，WZPK-505U，WZPK-374S，WZPK-375S，WZPK2-375SA，WZPK-376S，WZPK2-276SA，WZPK-276S，WZPK2-275SA，WZPK-503S，WZPK2-406SA，WZPK2-405SA，WZPK-406S，WZPK-4055，WZPK-404S，WZPK-304U，WZPK-206U，WZPK-205U，WZPK-203U，WZPK2-305SA，WZPK-306S，WZPK-305S，WZPK-303S，WZPK2-205SA，WZPK-26S，WZPK-205S，WZPK-204S，WZPK-203S，WZPK-106SA，WZP-430B，WZPK-2312U，WZPK2-176SA，WZPK2-175SA，WZPK-176S，WZPK-163S，WZPK2-466SA，WZPK2-465SA，WZPK-465S，WZPK2-366SA，WZPK2-365SA，WZPK-366S，WZPK-364S，WZPK-363S，WZPK2-266SA，WZPK-266S，WZPK-265S，WZPK-264S，WZP-166S，WZPK-263S，WZPK-165S
電接點雙金屬溫度計，WSSX-416，WSSX-406，WSSX-485，WSSX-415，WSSX-405，WSSX-484，WSSX-414，WSSX-404，WSSX-483，WSSX-413，WSSX-403，WSSX-482，WZPK-124U，WZPK-406U，WZPK-503U，WZP-3212U，WZP-270U，WRNN2-436，WRP-130，WRP2-130，WRP-131，WRP2-131，WRQ-130，WRQ2-130，WRQ-131，WRQ2-131，WRR-130，WRR2-130，WZPK-336SA，WZPK2-335SA，WZPK-236SA，WZPK2-235SA，WZPK-333S，WZPK-334S，WZPK-335S，WZPK-236S，WZPK-235S, WZPK-234S, WZPK-233S, WZPK2-136S, WZPK2-135SA, WZPK-136S, WZPK-135S, WZPK-134S, WRNR-01, WRER2-14, WRNR2-14, WRER-14, WRER2-12, WRNR2-12, WRER-12, WRNR-12, WZP2-6312A, WZP-6312A, WZP2-631, WRN-624, WRNR2-01, SBWR-4170/440D
應用
電接點雙金屬溫度計應用于生產現場對溫度需自動控制和報警。直接測量各種生產過程中-80～500℃范圍內體、蒸汽
和氣體介質溫度。
電接點雙金屬溫度計的特點：
• 現場顯示溫度，直觀方便；
• 具有自動切斷電源和報警功能；
• 安全可靠，使用壽命長；
• 多種結構形式，可滿足不同要求。
工作原理
電接點雙金屬溫度計是利用溫度變化時帶動觸點變化，當其與上下限觸點或斷開的同時，使電路中的繼電器動作，從而自動控制及報警。
主要技術參數
• 產品執行標準：JB/T8803-1998 GB3836-83
• 標度盤公稱直徑：100
• 精度等級：（1.0），1.5
• 熱響應時間：≤40S
• 防護等級：IP55
• 正常工作大氣條件：溫度-25～+55℃，相對濕度≤85%
• 設定點誤差：設定點誤差應不超過基本誤差限的1.5倍。
• 切換差：切換差應不超過基本誤差限的1.5倍。
• 切換重復性：切換重復性極限范圍不大于基本誤差限值的1/2。
|
