雙金屬溫度計wss-511 廠家

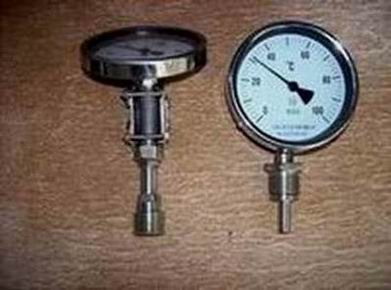

WSS-511雙金屬溫度計產品概述
WSS-511雙金屬溫度計是一種專為中低溫環境設計的現場測量?jī)x表，適用于液體、氣體和蒸汽介質的溫度監測。其核心元件采用多層金屬片結構，通過不同金屬的熱膨脹差異驅動指針轉動，實現直觀的溫度顯示。表盤設計清晰，直徑可選150mm，便于遠距離觀察，同時具備防水、防腐蝕和耐震動特性，適合工業環境長期使用。產品廣泛應用于石油、化工、電力、冶金等行業，滿足多樣化的安裝需求。112
Product Introduction of WSS-511 Bimetallic Thermometer
The WSS-511 bimetallic thermometer is an on-site measurement instrument designed for medium-to-low temperature environments, suitable for monitoring liquid, gas, and steam temperatures. Its core component consists of a multi-layer metal strip, which utilizes differential thermal expansion to drive the pointer movement, providing direct temperature readings. The clear dial design, available in 150mm diameter, ensures easy visibility even at a distance. With features like waterproofing, corrosion resistance, and vibration durability, it is ideal for long-term use in industrial settings. Commonly applied in sectors such as petroleum, chemical, power, and metallurgy, it supports flexible installation options.214
結構與材質特點
WSS-511采用不銹鋼（如1Cr18Ni9Ti）保護管和鎖緊螺栓，表殼經過電泳處理，整體結構輕巧且堅固。徑向型彎管設計獨特，兼具美觀與實用性。防護等級達IP55/IP65，可在潮濕或多塵環境中穩定工作。熱響應時間≤40秒，確�？焖俜答仠囟茸兓�。產品提供多種安裝方式，如可動外螺紋（M27×2）、卡套法蘭等，適配不同管道或設備接口。510
Structural & Material Features
The WSS-511 employs stainless steel (e.g., 1Cr18Ni9Ti) for protective tubes and fasteners, with an electroplated casing for enhanced durability. Its radial bent-tube design combines aesthetics with functionality. Rated IP55/IP65, it performs reliably in humid or dusty conditions. A rapid thermal response time (≤40 seconds) ensures timely temperature tracking. Multiple installation options, including movable external threads (M27×2) and clamp flanges, cater to diverse pipeline or equipment interfaces.612
應用場景與優勢
該溫度計適用于鍋爐管道、反應釜、儲罐等場景，尤其適合需要無汞害、易讀數的場合。相比傳統玻璃溫度計，其無汞設計更安全，機械結構更耐沖擊。用戶可根據需求選擇測溫范圍（如-80℃~500℃），并定制插入深度（75~2000mm）。產品簡化了維護流程，部分型號支持不停機更換機芯，減少停機損失。819
Applications & Advantages
Ideal for boiler pipes, reactors, storage tanks, and other scenarios requiring non-toxic and clear-readout solutions, this thermometer outperforms traditional glass models with its mercury-free design and shock-resistant construction. Users can select from a wide temperature range (e.g., -80℃~500℃) and customize insertion depths (75~2000mm). Maintenance is simplified with certain models allowing core replacement without shutdown, minimizing operational disruptions.1724
雙金屬溫度計
wss-561，wss-461，wss-552，wss-452，WSS-551，wss-451，wss-582，wss-482，wss-581，wss-481，wss-512，wss-412，wss-312，wss-511，wss-411，wss-311，wss-502，WSS-402，wss-302，wss-501，wss-401，WSS-301，WSSXP-481，WSSXE-481，WSSXP-411，WSSXE-411，WSSXP-401，WSSXE-401，WSSP-581，WSSP-481，WSSP-511，WSSP-411，WSSP-501，WSSP-401，WSSE-581，WSSE-481，WSSE-511，WSSE-411，WSSE-501，WSSE-401，WSS-583L
工作原理
雙金屬溫度計的工作原理是利用二種不同溫度膨脹系數的金屬，為提高測溫靈敏度，通常將金屬片制成螺旋卷形狀，當多層金屬片的溫度改變時，各層金屬膨脹或收縮量不等，使得螺旋卷卷起或松開。
由于螺旋卷的一端固定而另一端和一可以自由轉動的指針相連，因此，當雙金屬片感受到溫度變化時，指針即可在一圓形分度標尺上指示出溫度來。這種儀表的測溫范圍是200~650℃，允許誤差均為標尺兩程的1%左右。
概述
雙金屬溫度計的英文名稱是bimetal thermometer;bimetallic thermometer，是一種適合測量中低溫的現場檢測儀表，可直接測量各種生產過程中的液體、蒸汽和氣體介質溫度。
雙金屬溫度計主要的元件是一個用兩種或多種金屬片疊壓在一起組成的多層金屬片，利用兩種不同金屬在溫度改變時膨脹程度不同的原理工作的。是基于繞制成環性彎曲狀的雙金屬片組成。一端受熱膨脹時，帶動指針旋轉，工作儀表便顯示出熱電勢所應的溫度值。
|
