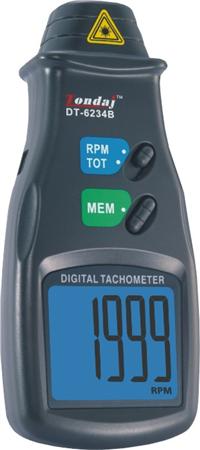

DT-6234B光電式轉速表是一款基于先進光電傳感技術研發的非接觸式轉速測量?jī)x器，專為工業設備、機械制造、汽車維修及科研實驗等領域設計。它通過光學原理實現無接觸測量，有效避免了傳統接觸式儀器可能造成的設備損傷，同時滿足了特殊場景下的安全檢測需求。

該轉速表具有高精度測量能力，測量范圍覆蓋2.5 RPM至99,999 RPM，分辨率為0.1 RPM（2.5至999.9 RPM）和1 RPM（1,000 RPM以上），測量準確度為±（0.05% +1個字）。它配備了5位31mm字高的超大液晶顯示屏，帶有藍色背光，即使在光線較暗的環境中也能清晰讀數。

DT-6234B還具備智能數據處理功能，能夠自動記憶最大值、最小值和最后測量值，并可存儲多達96組測量數據。其有效測量距離為50mm至500mm，適用于多種旋轉物體的測量。此外，該轉速表采用6MHz石英晶體振蕩器作為時基，量程可自動切換，電源為4×1.5V UM-3電池或外接DC 6V直流穩壓電源。

The DT-6234B Photoelectric Tachometer is a non-contact tachometer developed based on advanced photoelectric sensing technology, designed for industrial equipment, mechanical manufacturing, automotive repair, and scientific research experiments. It achieves non-contact measurement through optical principles, effectively avoiding potential equipment damage caused by traditional contact instruments, while also meeting safety inspection needs in special scenarios.

This tachometer is capable of high-precision measurement with a range of 2.5 RPM to 99,999 RPM, a resolution of 0.1 RPM (2.5 to 999.9 RPM) and 1 RPM (above 1,000 RPM), and an accuracy of ±(0.05% +1 digit). It features a large 5-digit LCD display with 31mm high characters and blue backlight, ensuring clear readings even in low-light conditions.

The DT-6234B also has intelligent data processing capabilities, automatically remembering the maximum, minimum, and last measurement values, and can store up to 96 sets of measurement data. Its effective measurement distance ranges from 50mm to 500mm, making it suitable for measuring various rotating objects. Additionally, the tachometer uses a 6MHz quartz crystal oscillator as the time base, with automatic range switching, and is powered by 4×1.5V UM-3 batteries or an external DC 6V stabilized power supply.
