DT-2239A頻閃儀/DT2239A
產品概述
DT-2239A頻閃儀是一款高精度數字顯示設備，采用微型計算機技術和光電技術實現非接觸式轉速測量及運動物體狀態檢測。該設備配備帶背光照明的超大屏幕液晶顯示器，確保讀數清晰無視差。量程覆蓋100~10000次/分或100~10000轉/分，適用于齒輪、離心機、泵、電動機等多種設備的運轉速度檢測。設備采用晶體控制時基和微處理器電路，無需外部校準即可保持測量精度。37
核心技術特點
本產品采用氙燈光源，閃光持續時間約60-1000ms，色溫6500°K白光，光束發散角80度，閃光能量4W。通過LSI微機集成電路實現寬量程高精度測量，在100-5000轉時精度達±1，5000轉以上±0.05%。獨特的單步調節（粗調/細調）和連續調節雙模式設計，使操作更為便捷。內置自動關機功能，一分鐘無操作即自動斷電，并設有電源電壓不足提示功能。4811
產品結構與設計
設備外殼采用重量輕而堅硬的ABS塑料制成，結構堅固精致，造型美觀大方。整機尺寸為21×12×12cm，重量約1kg，便于攜帶。發光管采用10mm紅色LED顯示，配有旋轉式旋鈕實現快速準確調節。工作電源支持110V-230V±10%寬電壓輸入，適應50-60Hz交流電，功耗低于30W。工作環境要求為0-50℃溫度范圍和小于80%RH濕度環境。121417
應用領域
該設備廣泛應用于包裝印刷行業檢測高速印刷過程套色情況，紡織業監測紡紗機和織布機運行狀態，以及機械制造業各類轉子、齒輪嚙合診斷。通過調節閃光頻率與被測物轉速同步，可使高速運動物體在視覺上呈現靜止?fàn)顟B(tài)，便于觀察分析。典型應用包括檢測油墨配色、模切工藝、織物緯線排列等生產過程中的運動狀態。2122
English Product Introduction
The DT-2239A digital stroboscope is a high-precision instrument featuring microprocessor-controlled quartz oscillation for accurate rotational speed measurement. With 0.3-inch 4-digit LED display, it covers measurement ranges of 100-10000 beats per minute or 100-10000 RPM. The xenon flash tube emits 6500°K white light with 80-degree beam angle, providing clear visualization of moving objects. 313
Key Features
This stroboscope incorporates advanced LSI microcomputer IC technology with crystal-controlled timebase, eliminating the need for external calibration. The dual-range selection (100-1000/1000-10000 RPM) and rotary knob adjustment ensure user-friendly operation. Automatic range switching and sampling time of 1 second enhance measurement efficiency. The compact design (21x12x12cm) with lightweight construction facilitates field applications. 1923
Operational Advantages
Featuring 4W flash energy and 60-1000ms flash duration, the device enables non-contact measurement of rotating machinery including gears, centrifuges and motors. The innovative power-saving design includes auto-shutdown after 1-minute inactivity and low-battery warning. The sturdy ABS housing provides durability in industrial environments while maintaining portability. 715
Application Scenarios
Ideal for troubleshooting in manufacturing processes, the DT-2239A assists in inspecting high-speed printing color registration, textile spindle rotations, and mechanical vibration patterns. By synchronizing flash frequency with object motion, it creates optical freezing effects for detailed analysis of dynamic processes in packaging, metalworking and assembly lines. 2124
DT-2239A頻閃儀
的詳細介紹

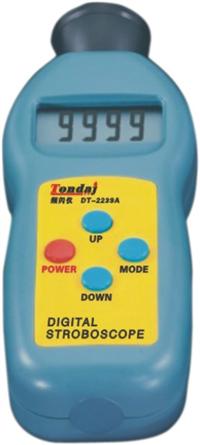

DT-2239A 數字式頻閃儀
四位液晶顯示
測量范圍：60～9999RPM
粗調/細調幅度：
＜1000RPM
粗調±10RPM
細調±0.1RPM
≥1000RPM
粗調±100RPM
細調±1RPM
非接觸測量物體轉速:√
檢測物體振動和缺損:√
帶藍色背光:√
自動關機:√
數字控制調整閃頻頻率，電源消耗低:√
電源：4 x 1.5V UM-3 AA
儀表尺寸：205x76x41mm
工作環境：0℃～40℃（32℉～104℉）0～70％Rh
產品顏色:藍灰
歡迎選購DT-2239A頻閃儀，我們有優勢的價格，的服務！公司承諾，所有商品保證原裝正品，一年保修，終身維護！業務咨詢:021-63515606
|
