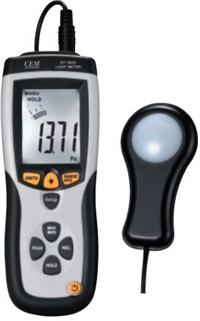

DT8809A照度計/DT-8809A
DT-8809A專業照度計中文介紹
DT-8809A是一款專業級手持式照度測量儀器，適用于多種光線環境下的照度檢測需求。該產品采用硅光敏二極管和光譜響應過濾器組成的探頭設計，可對不同角度的入射光進行充分補償和校正，測量范圍覆蓋0.1Lux至400,000Lux，具備40段模擬條顯示和4000位帶背光數字液晶顯示屏，提供直觀的讀數體驗。儀器支持峰值、最大值、最小值及數據保持功能，內置USB接口可實現測量數據快速傳輸至電腦進行分析，機身可存儲99組測量數據，方便用戶進行數據記錄和對比。產品響應速度為1.5次/秒，在10,000Lux量程內的測量偏差控制在合理范圍內。DT-8809A采用便攜式設計，重量約280克，適用于商場、體育館、工業生產車間等商業及工業場所的光照環境監測，也可滿足實驗室、農業種植等專業領域的光照測量需求。161326
DT-8809A Professional Illuminance Meter English Introduction
The DT-8809A is a handheld professional-grade illuminance meter designed for comprehensive light intensity measurement across various environments. Featuring a silicon photodiode probe with spectral response filter, this device provides accurate readings with angular compensation, covering an extensive measurement range from 0.1Lux to 400,000Lux. Its user-friendly interface combines a 4000-count backlit LCD display with 40-segment analog bar graph for clear visualization of measurement results. The instrument incorporates practical functions including Peak Hold, Max/Min recording, and Data Hold, while the built-in USB port enables convenient data transfer to computers for further analysis. With 99-group internal data storage capacity and 1.5 times/second sampling rate, the DT-8809A delivers efficient performance for commercial applications like shopping malls, stadiums, and industrial workshops, as well as specialized fields including laboratory research and agricultural cultivation. The compact design (203×75×50mm) and lightweight construction (280g) ensure portability for field measurements. 12141728
產品功能特點
DT-8809A照度計具備相對值模式、自動關機、低電量提示等實用功能，其40段模擬條顯示可輔助用戶快速判斷光照強度變化趨勢。儀器采用自動量程切換設計，無需手動調節即可適應不同亮度環境的測量需求。針對非標準光源環境，產品具備光譜相對率修正能力，可自動調整參數以提升測量準確性。USB連接功能支持將存儲的測量數據導出至電腦，配套軟件可幫助用戶進行數據管理和分析。該產品適用于燈光布置、建筑設計、室內照明評估等多種場景，能夠滿足日常檢測和專業測量的不同需求。25811
Technical Specifications
The device delivers ±5%±10d accuracy at 10,000Lux range and ±10%±10d at full scale, with resolution of 0.1Lux/0.01Fc. The rugged housing contains easy-to-operate buttons for function selection including Relative Mode, Data Hold, and Unit Conversion. Power is supplied by a standard 9V battery with auto-shutdown feature to conserve energy. The ergonomic structure (203×75×50mm) with protective case makes it suitable for long-duration fieldwork. Its wide applications cover lighting arrangement in photography studios, stage lighting adjustment, architectural lighting evaluation, and industrial production line illumination monitoring. The meter s rapid response characteristic makes it capable of capturing transient light pulses as brief as 10 microseconds. 391627
簡單介紹
歡迎選購DT8809A照度計，我們有優勢的價格，的服務！公司承諾，所有商品保證原裝正品，一年保修，終身維護！業務咨詢:021-63515606,QQ客服:332318574。
DT8809A照度計
的詳細介紹
| DT-8809A 產品特點： |
|
| |
·液晶讀數 4000
·模擬條指示 40段
·自動量程 有
·數據保持 有
·峰值保持 有
·大值/小值保持 有
·相對值模式 有
·USB電腦接口 有
·99組數據儲存 有
·低電量提示 有
·自動關機 有
EMC
EN:50081-1,50082-1
|
|
| |
| DT-8809A 技術指標: |
|
|
| |
照度計 DT-8809A
| 產品參數 |
|
|
DT-8809 |
| 大量程 |
400，000Lux |
| 基本精確度 |
±0.5％±10d(<10，000Lux/Fc) |
| ±10％±10d(>10，000Lux/Fc) |
| 大分辨率 |
0.1Lux/Fc |
| 測量速度 |
1.5次/秒 |
| 液晶讀數 |
4000 |
| 模擬條指示 |
40段 |
| 自動量程 |
有 |
| 數據保持 |
有 |
| 峰值保持 |
有 |
| 大值/小值保持 |
有 |
| 相對值模式 |
有 |
| 99組數據儲存 |
有 |
| USB電腦接口 |
有 |
| 低電量提示 |
有 |
| 自動關機 |
有 |
|
|
