電站測溫用熱電阻WZP2 -631B 供應

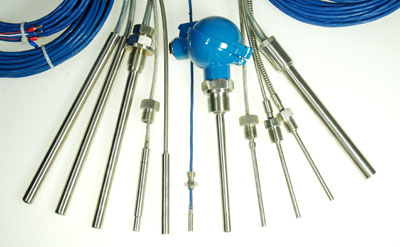

WZP2 - 631B 熱電阻產品介紹
中文介紹
WZP2 - 631B 熱電阻是專為電站測溫場景精心設計的高品質測溫元件。它采用優質鉑絲作為感溫元件，這種鉑絲具有極高的純度和穩定性，能夠在電站復雜的運行環境中長期保持精準的測溫性能。其測量范圍通常覆蓋 - 200℃至 + 850℃，能夠滿足電站中各種設備在不同工況下的溫度監測需求，無論是發電機繞組、變壓器油溫，還是汽輪機軸承等關鍵部位的溫度變化，都能被準確捕捉并實時反饋。
在結構設計上，WZP2 - 631B 熱電阻的保護管采用堅固的不銹鋼材質，經過精細加工，具備良好的抗腐蝕性和耐磨性，可有效抵御電站環境中可能出現的潮濕、油污以及機械沖擊等因素對熱電阻的損害。其引出線部分采用可靠的絕緣和密封措施，確保電信號傳輸?shù)姆�(wěn)定性和準確性，避免因外界干擾導致測量誤差。
安裝方式靈活多樣，可依據電站設備的具體結構和安裝空間，選擇合適的固定方式，如螺紋連接、法蘭安裝等，方便用戶快速、準確地將其安裝到測溫點。此外，該熱電阻的響應速度快，能夠在溫度發生變化時迅速作出反應并輸出對應的電信號，為電站的自動化控制系統提供及時、準確的溫度數據，助力電站實現安全、高效、穩定的運行，是電站溫度監測環節中不可或缺的可靠伙伴。
English Introduction
The WZP2 - 631B thermoresistance is a high - quality temperature - sensing element specifically designed for temperature measurement in power stations. It utilizes high - purity platinum wire as the temperature - sensing element, which boasts remarkable stability and can maintain precise temperature - measuring performance over the long term in the complex operating environment of power stations. The typical measuring range of this thermoresistance is from - 200℃ to + 850℃, capable of meeting the temperature - monitoring requirements of various equipment under different operating conditions in a power station. It can accurately capture and provide real - time feedback on temperature changes in key parts such as generator windings, transformer oil temperature, and turbine bearings.
In terms of structural design, the protective sheath of the WZP2 - 631B thermoresistance is made of robust stainless steel, which has been finely processed to offer excellent corrosion and wear resistance. It can effectively protect the thermoresistance from potential damage caused by factors such as humidity, oil contamination, and mechanical impact in the power station environment. The lead - out part of the thermoresistance adopts reliable insulation and sealing measures to ensure the stability and accuracy of the electrical signal transmission, avoiding measurement errors due to external interference.
The installation of this thermoresistance is highly flexible. Depending on the specific structure and installation space of the power station equipment, various fixing methods such as threaded connection and flange installation can be chosen to quickly and accurately install it at the temperature - measuring point. Moreover, the thermoresistance has a fast response speed. It can swiftly react to temperature changes and output the corresponding electrical signal, providing timely and accurate temperature data for the automation control system of the power station. This helps to ensure the safe, efficient, and stable operation of the power station. The WZP2 - 631B thermoresistance is an indispensable and reliable partner in the temperature - monitoring process of power stations.
電站測溫用熱電阻
WZC-130B，WZP-220B，WZP-221B，WZP-230B，WZP-231B，WZP2-220B，WZP2-221B，WZP2-230B，WZP2-231B，WZP-220AB，WZP2-220AB。WZC-220B，WZC-230B，WZC-220AB，WZP-320B，WZP-321B，WZP-330B，WZP-331B，WZP2-320B，WZP2-321B，WZP2-330B，WZP2-330B，WZC-320B，WZC-320B，WZP-420B，WZP-421B，WZP-430B，WZP-431B，WZP2-420B，WZP2-421B，WZP2-430B，WZP2-431B，WZP-42AB，WZP2-42AB，WZC-420B，WZC-430B，WZP-420B，WZP-421B，WZP-430B，WZP-430B，WZP-431B，WZP2-420B，WZP2-421B，WZP2-430B，WZP2-431B，WZP-42AB，WZP2-42AB，WZP-420B，WZC-430B，WZP-621B，WZP-621AB，WZP-631B，WZP2 -621B，WZP2 -621B，WZP2 -631B，WZP-621B，WZP-631B，WZP-621B，WZP2 -631B，WZP-621AB，WZP2-621AB，WZP-002，WZP-003，WZP-003A，WZCM-201，WZPM-201，WZPM-201，WZP-270S，WZP-26S，WZP-236SB，
量程規格
名 稱 分度號 測溫范圍 ℃ 精度等級 允 差Δt
鎳鉻－鎳硅熱電偶 K 0～800 2 ±2.5℃或 ±0.75％t
鎳鉻－銅鎳熱電偶 E 0～600 2 ±2.5℃或 ±0.75％t
鉑熱電阻 Pt100 -200～500 B ±（0.3＋0.005|t|）
注：t為感溫元件實測溫度或?qū)崪y(cè)溫度的值。
□公稱壓力
一般是指在常溫下，保護管所能承受的靜態外壓而不破裂，試驗壓力一般采用公稱壓力的1.5倍。實際上，允許工作壓力不僅與保護管材料、直徑、壁厚有關，而且還與其結構形式、安裝方法、置入深度以及被測介質的流速、種類有關。
□熱電偶絕緣電阻
常溫絕緣電阻的試驗電壓為直流500Ｖ。測量常溫絕緣電阻的大氣條件為：溫度15～35℃，相對濕度45％RH，大氣壓力86～106kPa。
對于長度超過1米的熱電偶，它的常溫絕緣電阻值與其長度的乘積應不小于100MΩ•m，
即：Rr•L＞100MΩ•mL＞1m
式中：Rr-熱電偶的常溫絕緣電阻值，MΩ；
L－熱電偶的長度，m。
對于長度等于或不足1米的熱電偶，它的常溫絕緣電阻值應不小于100MΩ。
□熱電阻絕緣電阻
常溫絕緣電阻的試驗電壓可取直流10～100Ｖ任意值，環境溫度應在15～35℃范圍內，相對濕度應不大于80％RH，常溫絕緣電阻值應不小于100MΩ。
□熱電阻允許通過電流
通過鉑電阻的測量電流大不超過5mＡ。
|
