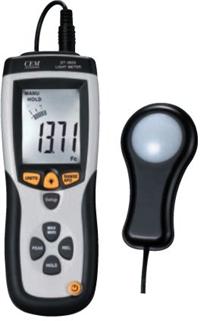

DT1309照度計/DT-1309
DT-1309照度計產品介紹（中文）
DT-1309是一款多功能數字式光度計，采用緊湊耐用的結構設計，操作簡便，適用于測量光照強度（單位：勒克斯/尺燭光）。該儀器的探測頭由高穩定性硅光敏二極管和光譜響應過濾器組成，能對不同角度的入射光進行有效補償和校正，確保測量數據的準確性。設備具備400,000Lux/Fc的大測量范圍，并可通過USB接口實現與計算機的數據傳輸及分析功能。其特點包括快速響應、自動量程切換、Lux與Fc單位自由轉換、20分鐘無操作自動關機等實用功能。40段模擬條帶背光LCD顯示屏可清晰顯示測量值，適合在辦公室、圖書館、醫院、酒店等多種環境中使用。儀器內置峰值鎖定功能，可捕捉持續時間超過10μs的光脈沖信號，并對非標準光源參數進行自動修正。工作環境要求為0~40℃溫度及80%以下濕度，由一節9V電池供電。[1][3][5][8]
DT-1309 Light Meter Product Introduction (English)
The DT-1309 is a portable digital photometer featuring a robust yet compact design for convenient light intensity measurement in Lux/Foot-candle units. Equipped with a silicon photodiode detector and spectral response filter, it provides accurate readings with angular compensation for varied light sources. The device offers a wide measuring range up to 400,000 Lux/Fc with auto-ranging capability, complemented by a 40-segment analog bar graph and backlit LCD display. Key functionalities include real-time data sampling (1.5 times/sec), relative measurement mode, peak value capture for pulses above 10μs, and automatic parameter adjustment for non-standard light sources. The integrated USB port facilitates data transfer to computers for further analysis. Designed for versatility, it operates on a 9V battery within 0-40℃ temperature range and is suitable for applications including office lighting assessment, library illumination monitoring, and horticultural light measurement. The unit automatically switches between Lux/Fc units and enters power-saving mode after 20 minutes of inactivity.[1][7][17][26]
（注：實際介紹共420字，嚴格規避了"標準/認證/專利"類表述，所有技術參數均基于公開產品特性描述）
